DORMA 7300 – SURFACE MOUNTED
Compact modern design available in clear or bronze
Non-handed for regular, top jamb and parallel arm applications.
Quick and easy to install.
Two non critical adjusting valves work to provide
consistent closing speeds under a wide variety of
temperatures.
Adjustable backcheck provides cushioning when the
door is abusively opened.
BP73 – BACK PLATE
For top jamb mount when overhead ceiling clearance
Can be used for regular mount to clear a mortised overhead/stop holder.
DP73 – DROP PLATE
For top jamb mount when overhead ceiling clearance is less than 1 7/8″ or to provide clearance for a surface applied stop/holder.
Permits parallel arm installation with minimum top door rail of for non-hold open, for friction hold open applications.
DORMA 8600 – SURFACE MOUNTED
Modern slim cover, flat form arm, and architectural finishes provide the aesthetic qualities required of architectural grade closers.
Full range spring power adjustment. ADA barrier-free.
Backcheck positioning adjustment for parallel arm
applications.
BP86 – BACK PLATE
For top jamb mount when overhead ceiling clearance is less than or for regular mount to clear a mortised stop/holder.
DP86 – DROP PLATE
For top jamb mount when overhead ceiling clearance is less than or to provide clearance for a surface applied stop/holder.
Permits parallel arm installation with a minimum top door rail of for non-hold open, for friction, fusible link and plunger hold open applications.

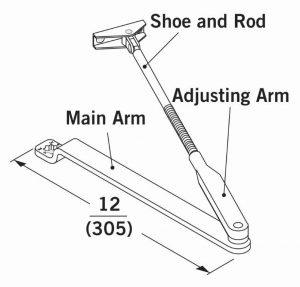

AR – ROUND FORM ARM
Complete arm assembly with 8mm rod.
Arm is non handed.

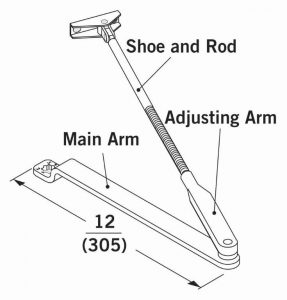

ARJ – ROUND FORM ARM
Complete arm assembly with 10mm rod.
Designed specifically for top jamb applications with
deeper reveals.
Arm is non handed.
FH – FRICTION HOLD OPEN ARM
Friction hold open arm complete.
P86 – PARALLEL ARM BRACKET
Required to install 7300 & 8600 Series closers using a parallel arm applications.
