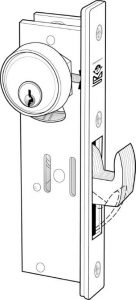

1753A – MS HOOK LOCK
The MS hook bolt deadlock answers the security need of swing and sliding doors.
The massive laminated bolt is provided in a hook shape to resist the parting motion of door and jamb.
The over center MS locking action assures that forced
entry attempts to pry the door in any direction will be
defeated.

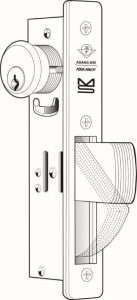

1850S – MS DEADBOLT
A huge bolt of laminated stainless steel, nearly three inches long, activated by an uncomplicated pivot mechanism.
The length of this bolt provides maximum security for a single door leaf.

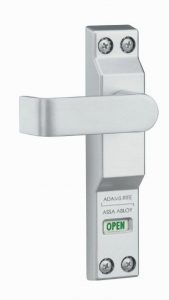

4550 – MS DEADLOCK LEVER
Easily unlocks an MS deadlock with approximately three pounds of downward force.
Lever is spring loaded to horizontal, relocks with upward motion.
Indicator signals lock status.
Can be installed in place of existing thumbturn on
inside of door.

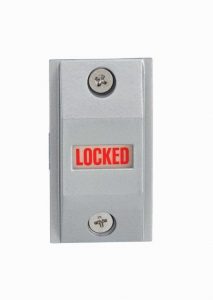

4089 – EXIT INDICATOR
Provides exit door notification for various Adams Rite deadlocks.
Provides unmistakable notification of an exit
appears in red letters on white
background.
4089 – EXIT INDICATOR
Provides exit door notification for various Adams Rite deadlocks.
Provides unmistakable notification of an exit
appears in red letters on white
background.
4015 – THRESHOLD BOLT
Adding the 4015 bolt to a MS deadlock allows maximum security for pairs of doors by the turn of a single key.
Simultaneously dropping a stainless steel hex bolt into the threshold and pivoting the massive MS bolt into the mating door’s stile, the two point lock secures the entire double door entrance.
The 4015 threshold bolt is harnessed to the rear of the pivoted bolt.
4016 – HEADER BOLT
Adding the 4016 header bolt and the 4015 threshold bolt to a pivoted bolt MS deadlock allows maximum security for pairs of doors by the turn of a single key.
Simultaneously extending the stainless steel hex bolts top and bottom and pivoting the massive MS bolt into the mating door’s stile, the three-point lock secures the entire double door entrance.
1830 – BOTTOM RAIL LOCK
For bottom rail locking of ultra-narrow stile or tempered glass doors whose bottom rail (shoe) is too shallow.
Mechanism is that of the MS 1850 deadlock, but with the bolt size reduced. This keeps the threshold strike opening to a practical minimum, avoiding collection of debris or snagging of spike-heeled shoes.
777S – DOOR RAIL FLOOR LOCK
Solid brass construction.
Requires DRA1020 style cylinder and thumbturn.

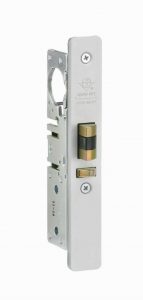

4510 – DEADLATCH
Flexibility of traffic control during and after business hours is offered by 4510 series dead latches.
A reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for hospitals, banks, stores and other buildings which require free entrance at certain times and exit-only at other times.
Auxiliary bolt is to prevent credit card or pocket knife
entry.

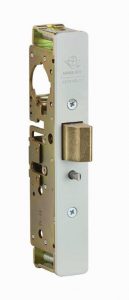

4900 – HEAVY DUTY DEADLATCH
Flexibility of traffic control and installation is offered by 4900 series heavy duty dead latches.
A reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for applications which require free entrance at other times and exit-only at other times.
Auxiliary bolt is to prevent credit card or pocket knife
entry.

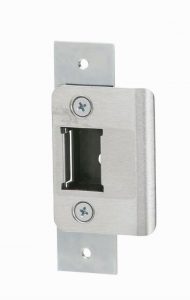

4902 – DEADLATCH STRIKE – SHORT
Designed for use in conjunction with 4300, 4500, 4700, and 4900 series dead latches.
These strikes offer a choice of mounting methods; a backup mounting plate included allows installation flush in a hollow section jamb.
Includes molded black plastic dust box and steel mounting plate.
Available in flat or radius.
4901 – DEADLATCH STRIKE – LONG
Designed for use in conjunction with 4300, 4500, 4700, and 4900 series Dead latches.
These strikes offer a choice of mounting methods; a backup mounting plate included allows installation flush in a hollow section jamb.
Includes molded black plastic dust box and closure of the unused lower strike opening with steel mounting plate.
Long face is designed to span strike area of MS deadlocks with which the Deadlatch is
Available in flat or radius.
4560 – DEADLATCH HANDLE
Designed top operate 4300, 4500, 4700 and 4900 series latches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handle escutcheon and fits solidly into the cylinder hole of the latch.
NOT intended for use as a door pull.

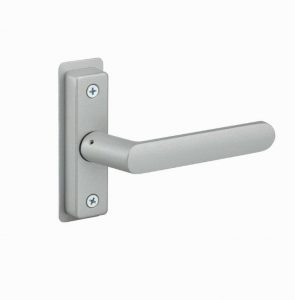

4568 – EUROSTYLE DEADLATCH HANDLE
Modern European styling offers a generous hand grip with shank offset away from the narrow stile jamb for hand safety.
Designed top operate 4300, 4500, 4700 and 4900 series latches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handle escutcheon and fits solidly into the cylinder hole of the latch.
NOT intended for use as a door pull.
4591 – DEADLATCH PADDLE
An alternative to knob or lever handle. Makes opening a latched door as natural as opening an unlatched one. Just push in the direction the door swings.
Available for any 4300, 4500, 4700 and 4900 series latches.

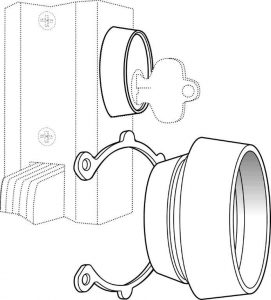

MS4043 – CYLINDER GUARD
A hardened steel ring to prevent cylinder from vandalism.
The beveled collar, free spinning cylinder guard is used to prevent the removal of the lock cylinder with pliers or a pipe wrench.
1870 – CYLINDER-OPERATED FLUSHBOLT
Designed for use instead of conventional flip-lever operated flushbolts, the 1870 gives building management key control of the inactive leaf of paired doors.
Prevents casual locking of the inactive leaf by children or other unauthorized persons.
Recommended for installation of both top and bottom of inactive door.

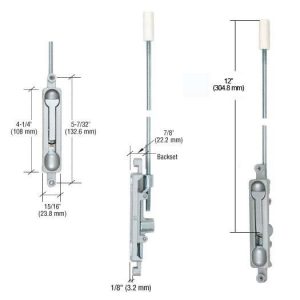

1875 – FLUSHBOLT
Positive joint actuator with throw. backset
Square nylon tip with beveled corners.
Flushbolts are complete with rod, square nylon
tip, nylon flushbolt guide, and steel mounting screws.
412 – DUST PROOF STRIKE
Use with manual and cylinder operated flushbolts
Satin chrome finish.
404H – HEAVY DUTY ROLLER LATCH
Cast brass/bronze, satin chrome plated with nylon roller.
Simple adjustment for roller projection
MS+1890 – MS DEADLOCK/DEADLATCH
Maximum security deadlock after hours, plus traffic control convenience for management during the business day.
Typical installation is for a door requiring three modes of door control:
1. Both lock and latch bolts retracted for unrestricted entry and exit during business hours.
2. Handle-operated latch for exit only traffic just after closing.
3. Maximum security hook bolt for overnight lockup. Handle or paddle operates latch bolt only
2190 – INTERCONNECTED DEADBOLT/DEADLATCH
The dual force 2190 combines the access control capabilities of the latch with the security of a deadbolt.
The key retracts and extends the deadbolt (and deadlatch) from either side.
The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic proof exiting.

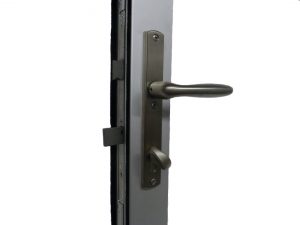

HOPPE – LEVER LOCKSET
A single point mortise lock consisting of a latch and a 1″ throw deadbolt.
A simple 135 degree turn of the thumbturn operates the deadbolt.
Verona handle available in satin nickel or matte black. 1 3/8″ backset, 2 5/32″ overall depth.
Ideal for residential applications.
